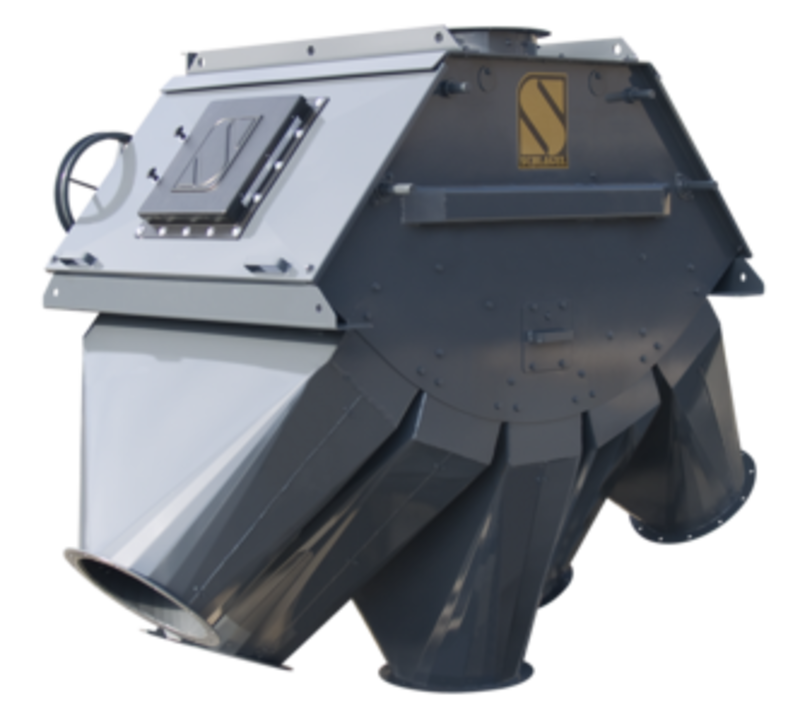

SwingSet^® Distributors

45° Distributor
This is the standard distributor supplied. It is used with whole grains, fertilizer and free flowing feed products.
55° Distributor
The 55 degree distributor is used whenever you have a sluggish product such as mixed feed with fat or molasses in it. These units average about 30% taller than a 45 degree unit. If you are handling both free flowing and sluggish materials, you may be able to use a 45 degree distributor by only running the sluggish material through the ducts closest to the center and the free flowing products through the outer ducts.
Fertilizer Distributor
The construction of a fertilizer distributor is the same as an all mild steel distributor except for the following additions:

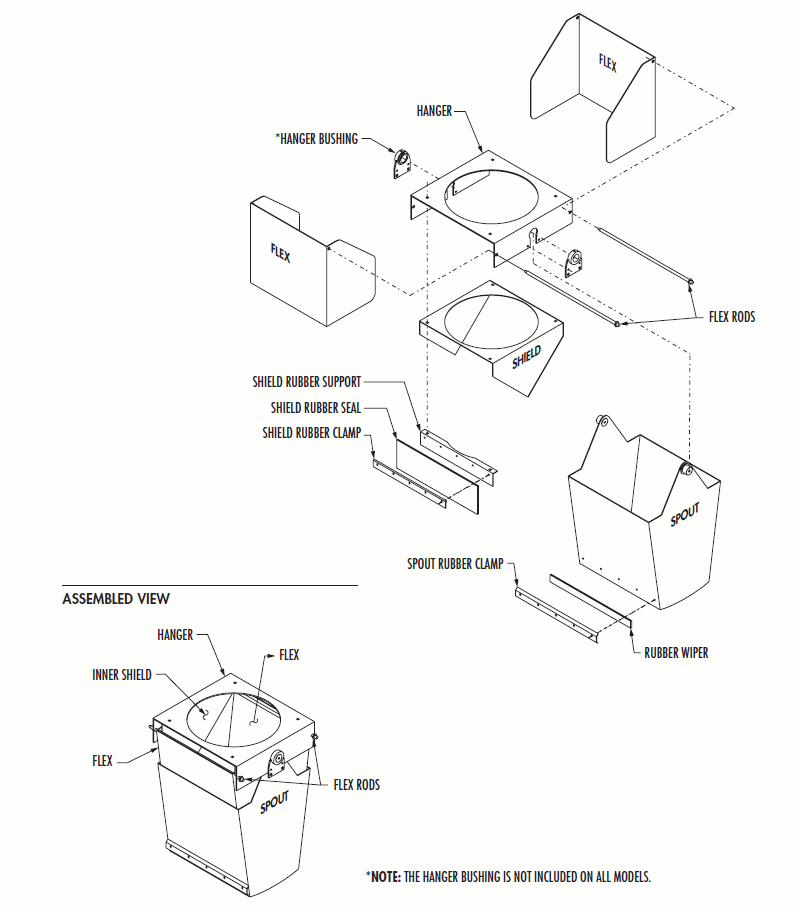

All parts that move against one another, to affect the swinging of the inner spout, are made of type 304 stainless steel. This consists of the inner spout, spout flexes, spout latch plate, hanger, shields and pivot rods for flexes.
The interior roller chain is stainless steel.
Stainless steel operating cable is provided for 50 feet of operation.
As an option, complete sandblasting and epoxy coating of the exterior and interior of the unit is available.

Note: All prices and dimensions are subject to change without notice.

Any style distributor can be ordered using either stainless steel (type 304 standard) or galvanized steel construction.

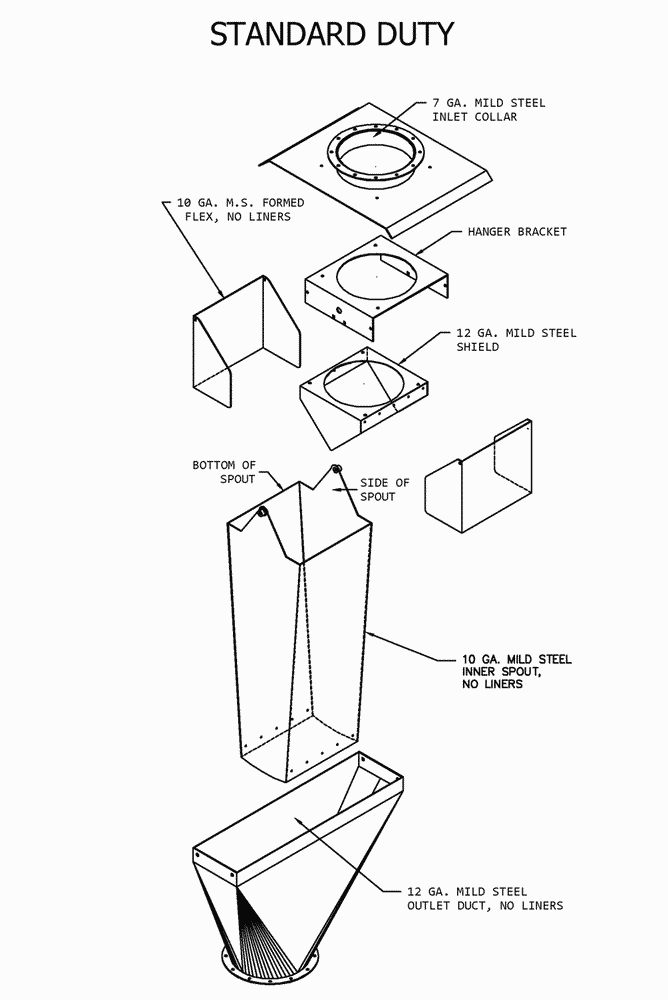

Standard Duty
The inner spout and spout flexes are 10 gauge mild steel. The outlet ducts are 12 gauge mild steel. No liners are used.

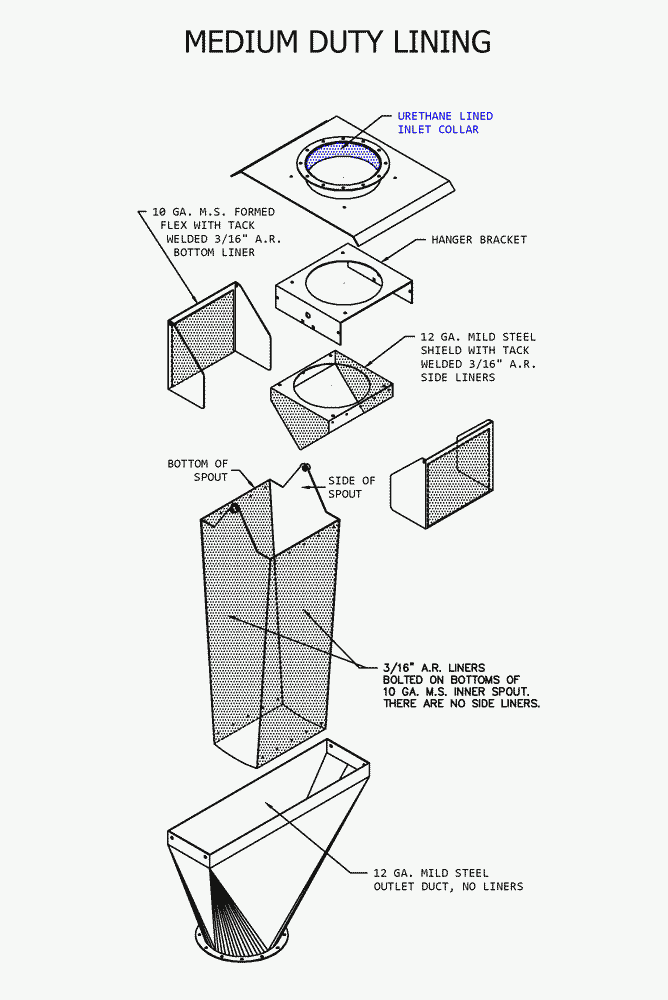

Medium Duty
The inner spout and spout flexes are 10 gauge mild steel with 3/16 inch abrasion resistant steel liners on the bottom surfaces. The outlet ducts are 12 gauge mild steel without any liner.

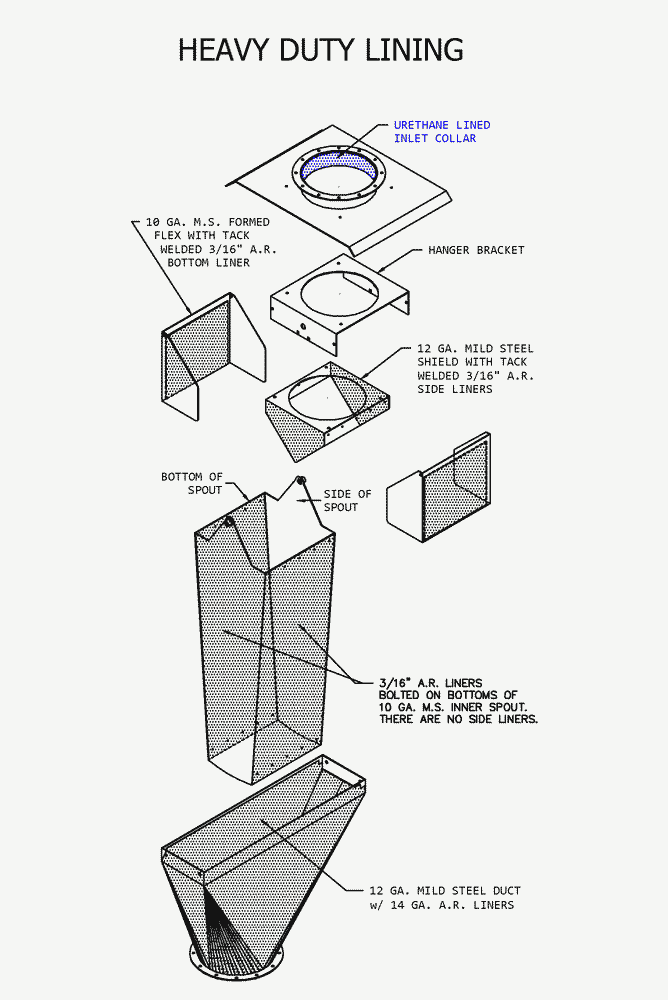

Heavy Duty
The inner spout and spout flexes are 10 gauge mild steel with 3/16 inch abrasion resistant steel liners on the bottom surfaces. The outlet ducts are 12 gauge mild steel and are provided with a high carbon steel replaceable liner.
Electrically Operated
Electronic “EDI” Control is standard when ordering an electric Distributor. Limit switch option is also available for SyncroSet and SwingSet Distributors.
Oversize Duct Outlets
Oversize discharge ducts are available to allow you to feed into a specific duct with more than one inner spout simultaneously. An example would be an 8 inch double distributor with one duct having a 12 inch diameter opening rather than the normal 8 inch diameter.
